The next generation of wireless technology has a power problem hiding behind the promise of faster data. Hardware must adapt to changing signals, yet holding an electronic setting can itself consume energy. A new 6G microchip research project tackles that quieter part of the problem.
On 22 September 2026, University College Cork highlighted an international collaboration involving its Tyndall National Institute. The researchers integrated programmable switches made from hexagonal boron nitride, or hBN, with gallium nitride radio-frequency circuits. Their goal is more adaptable hardware with extremely low standby power. UCC’s announcement describes a laboratory demonstration, not the launch of a commercial 6G service.
A switch that remembers its setting
The key idea is non-volatility: after a switch is set, it retains that state without requiring continuous power to hold it there. The hBN devices are memristive switches, meaning their electrical resistance can be changed and retained.
The team combined these devices with gallium nitride microwave circuitry. In plain language, it joined a tiny remembering switch to hardware designed to work with high-frequency radio signals. The university reports demonstrations in several components used to control those signals.
The evidence is in radio components
The underlying Nature paper was published on 8 July 2026; this week’s university release draws attention to that earlier study. The work describes operation up to 100 gigahertz and examples including programmable signal-control components. Gigahertz here describes signal frequency. It is not a claim of a 100-gigabit-per-second internet connection.
The paper also reports retention over two weeks and switching endurance of 3,250 cycles. Those are useful experimental measurements, but they do not establish the lifetime of a commercial radio. A component must meet the requirements of the specific system in which it will operate.
Equally, low standby power at a switch does not mean an entire network uses no electricity. Transmitting, receiving, processing and cooling remain separate demands. The value of the approach is reducing a particular source of overhead while preserving useful radio performance.
The engineering challenge moves beyond the switch
Our assessment is that the important next step is integration. A successful device on a research chip still needs a repeatable manufacturing process, dependable packaging and a useful role in a complete radio design.
The commercial case will depend on the total result. A lower-power switch would be less compelling if the surrounding system became much harder to manufacture or control. Conversely, a reliable way to retain many settings could give engineers more freedom to build flexible hardware.
That makes this a worthwhile development in the wider computing and infrastructure landscape. The result does not put 6G in a phone tomorrow. It offers a concrete experiment in making future communication equipment more efficient at the component level, where seemingly small design choices can accumulate across a much larger system.

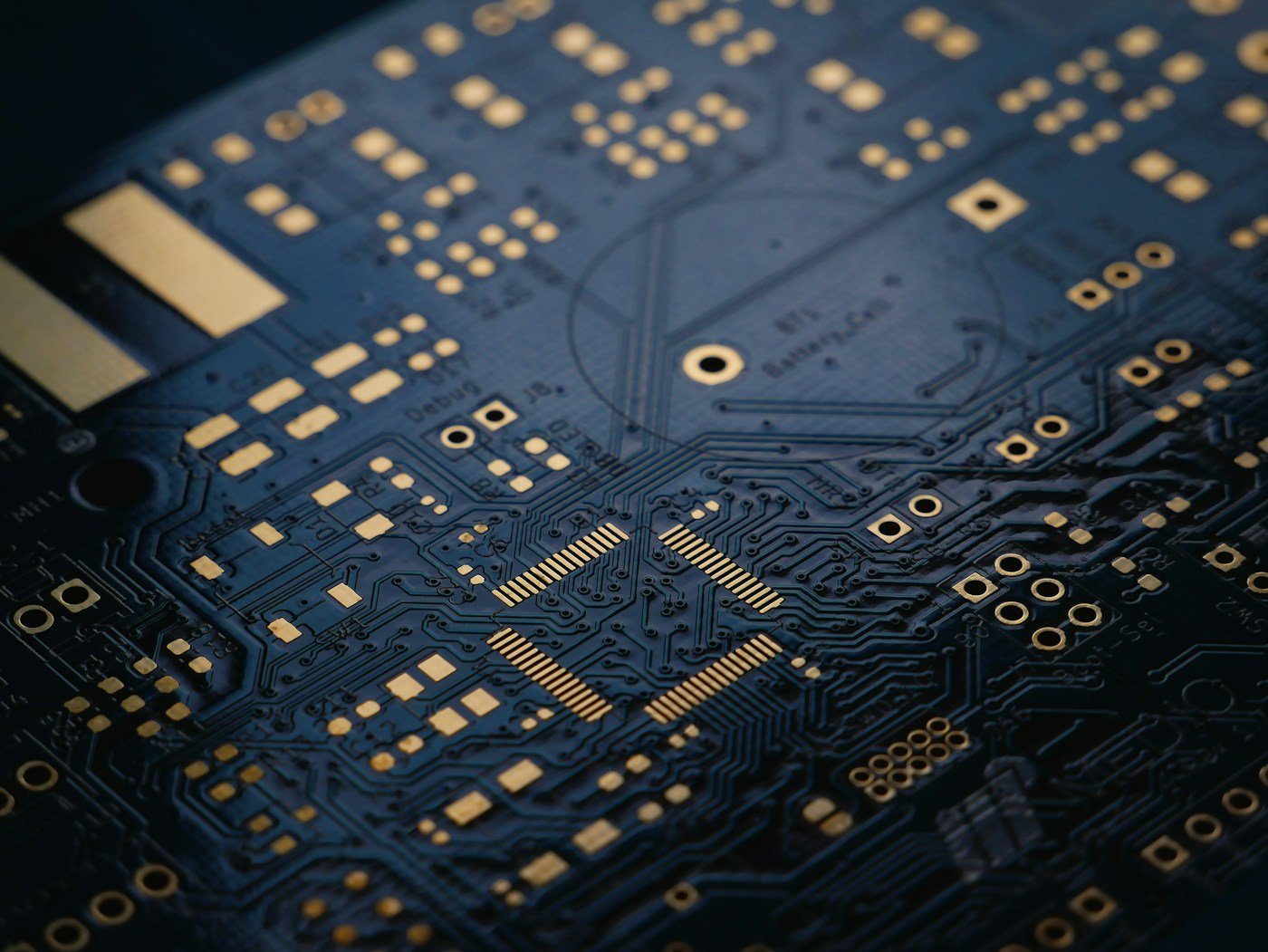

Featured image: Context photograph. Gold-finished traces on a conventional printed circuit board. Credit: Vishnu Mohanan / Unsplash.
